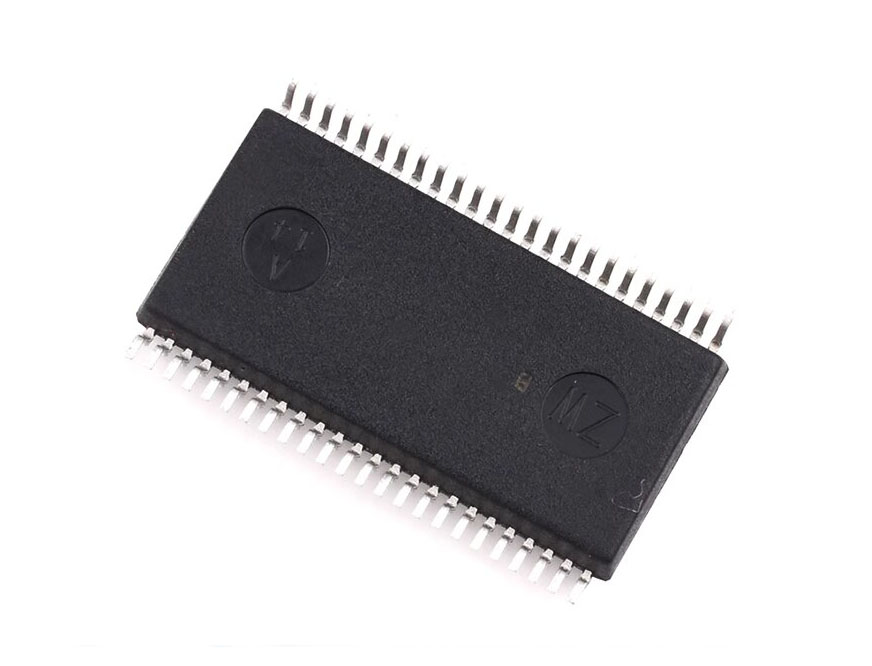

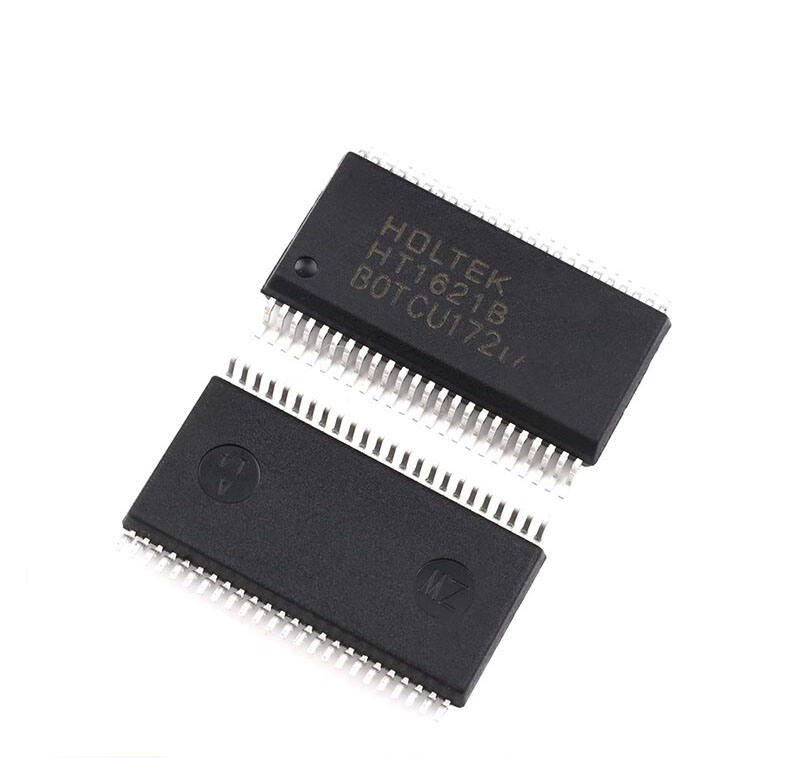

HT1621B is an LCD driver IC commonly used to control segmented displays. Below are the key parameters and features of the HT1621B:

Key Parameters:

Operating Voltage:

2.4V to 5.2V (typical operating range)

Current Consumption:

Operating: 2 µA (at 3V)

Power Down: 1 µA (at 3V)

LCD Bias Voltage:

1/2 or 1/3 bias voltage for LCD driving.

Display Capability:

32×4 (128 dots) LCD driving capability.

Interface:

3-wire serial interface (Data, Write, and Chip Select pins).

Oscillator:

Built-in oscillator (internal clock) or can use an external clock.

Frame Frequency:

LCD frame frequency of approximately 150 Hz (adjustable by clock).

Operating Temperature:

-40°C to +85°C.

Features:

Clock Source: Can operate with an external clock or use an internal RC oscillator.

Low Power Consumption: Ideal for battery-operated devices.

Power-Saving Modes: Includes an integrated power-saving function.

Data Transmission: Simple 3-wire serial interface, facilitating easy communication.

Flexible Bias Modes: 1/2 or 1/3 bias selectable for different contrast requirements.

Multiple Pin Configurations: Supports multiplexing for connecting a variety of LCD segment layouts.

This makes the HT1621B suitable for applications like clocks, meters, and other devices needing a low-power LCD dsplay driver.
